DOTWAY launched a new model Thin Client DT-880L Representing the most advanced network computing technology in the world.

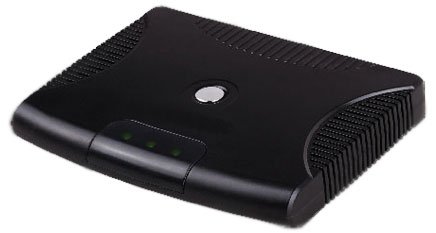

Thin Client DT-880L
The DOTWAY L-Series incorporates the Dirty Matrix Protocol into a compact access terminal that connects over Ethernet to the shared host PC. DOTWAY L-Series connect to the internet through many standard TCP/ IP protocols, and make many users sharing simultaneously one standard PC come true. This can help the customers save the total cost of ownership. DOTWAY L-series can be suitable to use in Enterprises, schools, train centers and all various environments. You can use the internet wire line to connect the terminal and the standard PC. You also can use HUB, Switch hub, or Router to connect them or even through the internet.
DOTWAY L-Series is the independent terminal based on MIPS idea, we also adopt the design technology of 32 bits Soc Chips. Then this product can cost lower electricity consumption, but can run fast and have the prefect display effect.; it is a computer terminal without CPU. HDD and Memory. These terminals share the resources of the host computer, such as CPU, memory, hard disk, driver. The operation is the same as the host PC.
DOTWAY L-Series Benefits:
• Supports system: Windows 7,Windows VISTA, Windows 2008,Windows XP PRO, Windows Server 2003,Linux.
• Share one PC with up to 40 users.
• Dramatically reduce the capital cost and electricity consumptions.
• Easy to set up, maintain, and secure.
• Support 640x480, 800x600, 1024x768, 1280x720. 16 bit color (65,536 colors)
It makes your TCO (Total Cost of Ownership) almost Zero! It almost does Zero harm to the environment!
1. Zero first-time investment (Almost)
One single standard PC shared by multiple users, enterprises no longer need to buy a PC for each employee. They deploy Zero Clients for those standard office works needed, like editing Office files,surfing, mailing, online voice chatting, etc. A Zero Client only costs 25%, or even less, of an entry level PC.
2. Zero maintenance
It’s a Zero configuration client. Besides, there is not any local Windows OS running on it. So it’s absolutely virus and malware immune. Maintenance of the whole system is centralized and only need to be done on the host PC or server end.
3. Zero ongoing upgrading required
Only the host PC need persistent updating for its software and hardware, since all applications and user profiles are managed centrally on the host PC/server side. As performance mainly depends on the host PCs, it is no longer necessary to plan software and hardware upgrades for the Zero Clients.
4. Zero power consumption
Only one book size design outlook only occupy little space in the office, and we also design the metal bracket to hang it back on the display screen monitor.
5. Zero emission of CO2 and Zero generation of e-wastes (Almost)
Less materials help in reducing the e-wastes and the emission of CO2 that has been the major issue of our planet. Greener technology will be the mainstream of the IT development.
DOTWAY L-Series Working principle
At present, PC becomes so strong, especially the available resource of host system. DOTWAY L-Series can visit such strong functional PC effectively. Each DOTWAY L-Series can be as the independent operating terminal which creates independent and secure environment that does not influence other terminals and its host PC. DOTWAY L-Series makes use of the characteristics of computers extra operating, then Users can both visit the internet and office simultaneously.
DOTWAY L-Series Solutions

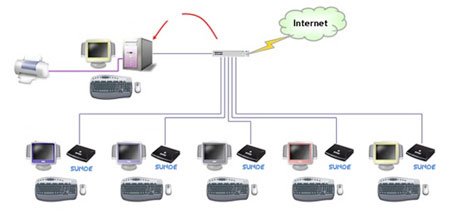

Adopting the DOTWAY L-Series solution, not only the multi-user can use the hard, soft resources and all of the outer equipments of the host, such as browse the web, play net games and ASP, instant messenger, send private email etc. but also can use the Windows applicant software such as office software, multi-media. You do no need to buy complicate and expensive computers.Firstly, installing the software attached in the host, then connect the DOTWAY L-Series to the host through Switch HUB/Router.if you want to add another work station under the configuration of the sever, you just need to add the equipment as below: 1 display, 1 DOTWAY L-Series,1 keyboard, 1mouse., then you will get the same operating environment as the host PC.
Contrast to standard computer:
Standard PC
DOTWAY L-series
Cost
(1) One computer for one user
(2) a minimum of 230 watts power consumption (3) costly replacement or upgrade of parts
(1) Maximum 40 units of DOTWAY M-Series can be connected to a standard PC, 41 users in total (including the host PC) (2) Only 5 watts power consumption (3) No need of hardware update for DOTWAY terminals
Maintenance
Need to be carried out on each individual computer.
Only to be carried out on the host PC, highly effective.
Environment
Huge amount of heat generation, fan noises
No noise, least heat generation, offering clean , quiet and pleasant working environment
Portability
Not applicable
Small and light, can be taken to anywhere and connected to host PC wherever internet connection is available.
Product Specifications
Power
INPUT AC110V ~ 240V 50/60 Hz, OUTPUT DC 5V/2A
Size
168mm( W ) x 30mm( H) x 138mm( D )
Weight
500g
Port
DC Power Jack, PS2 Keyboard Port, PS2 Mouse Port,Ethernet (RJ- 45) Port, Video Monitor Port, 1USB PORT
Protocol
NETPOINT, RDP
Supported OS
Windows 7,VISTA, Windows XP Professional, Windows 2008, Windows Server 2003, LINUX
Note: This product is intended to reduce H/W deployment and maintenance costs. Additional software licenses may be required by the software licensors. Please check your software user license agreement to ensure your continued compliance with such agreement.
Dirty Matrix Protocol into a compact access terminal that connects over Ethernet to the shared host PC. DOTWAY L-Series connect to the internet through many standard TCP/ IP protocols, and make many users sharing simultaneously one standard PC come true. This can help the customers save the total cost of ownership. DOTWAY L-series can be suitable to use in Enterprises, schools, train centers and all various environments. You can use the internet wire line to connect the terminal and the standard PC. You also can use HUB, Switch hub, or Router to connect them or even through the internet.
